Interdigital Filters

This is an inheritantly bandpass filter created from an array of mutually coupled lines. The design can vary from a bunch of circular TEM lines in a box to a planar design of coupled lines on microstrip. This is the microstrip approach.

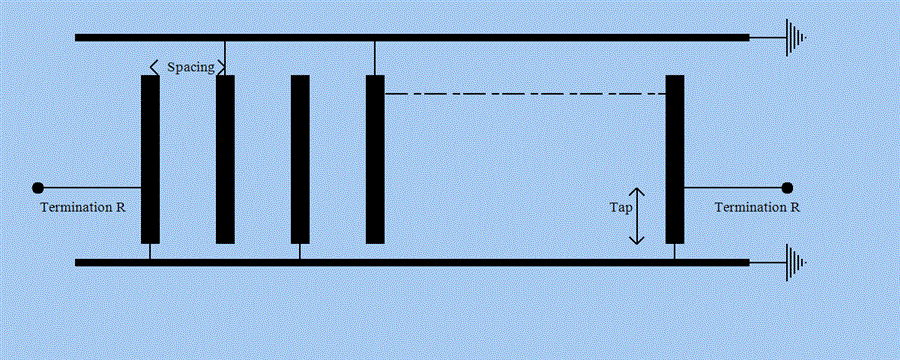

Interdigital Diagram

Design Specification

Enter the design parameters

Note:

Aim to get the track width - spacing ratio for a Zeven, Zodd either side of Zo

For zero loss set thickness = 0
